Task 1

Your first task is the TouchCORE assisted conversion of the Book Store into a RESTful service.

WARNING! Start your screen recording now. Your entire on-screen task activity must be captured. This includes your familiarization with the task description!

Task Illustration (Restifying the Zoo)

I will now illustrate the steps of a TouchCORE assisted conversion to a RESTful service on the example of the Zoo.
I will use the previously shown Zoo REST interface description.

Afterwards, your task will be to apply the same TouchCORE assisted methodology on a different application. Your task is not to replicate the Zoo conversion while you are watching.

• Please now watch this screencast where I demonstrate and explain TouchCORE usage.
  • Below you then find a summary of the main steps.
  • If anything does not work as expected, take a look at the Troubleshoot section.

Load TouchCORE Project

• Locate the TouchCORE release folder
• Launch TouchCORE: java -jar TouchCORE.jar
• Load the prepared Zoo model:
  • Click the folder icon.

• Navigate to the provided Class Diagram
  • Tap and hold the "Zoo" box

  • Select "Open Realization Model"
  • Inspect the Class Diagram (Business Logic)


Draw ResTL Model

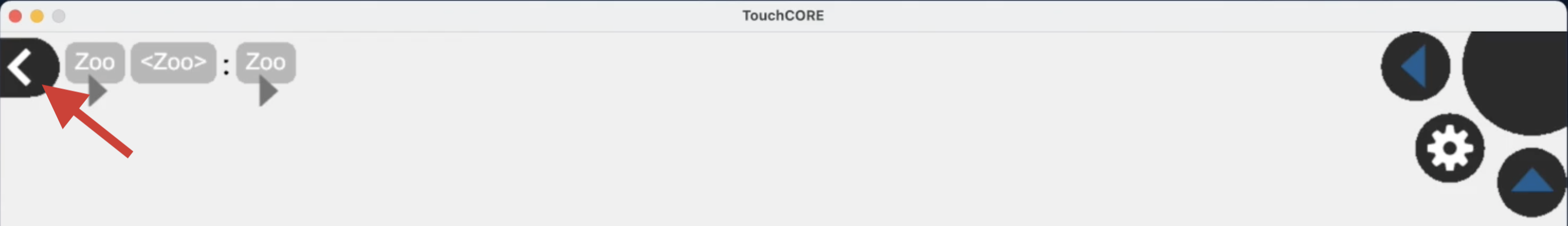

• Use the Navigation bar to leave the Class Diagram

• Open the "ResTL" perspective:

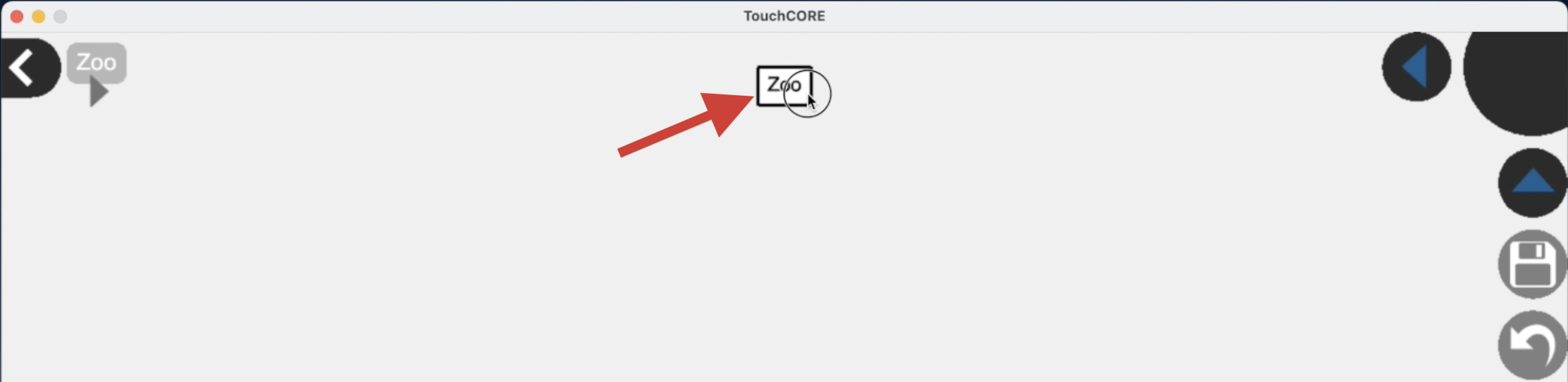

  • Tap and hold the "Zoo" box

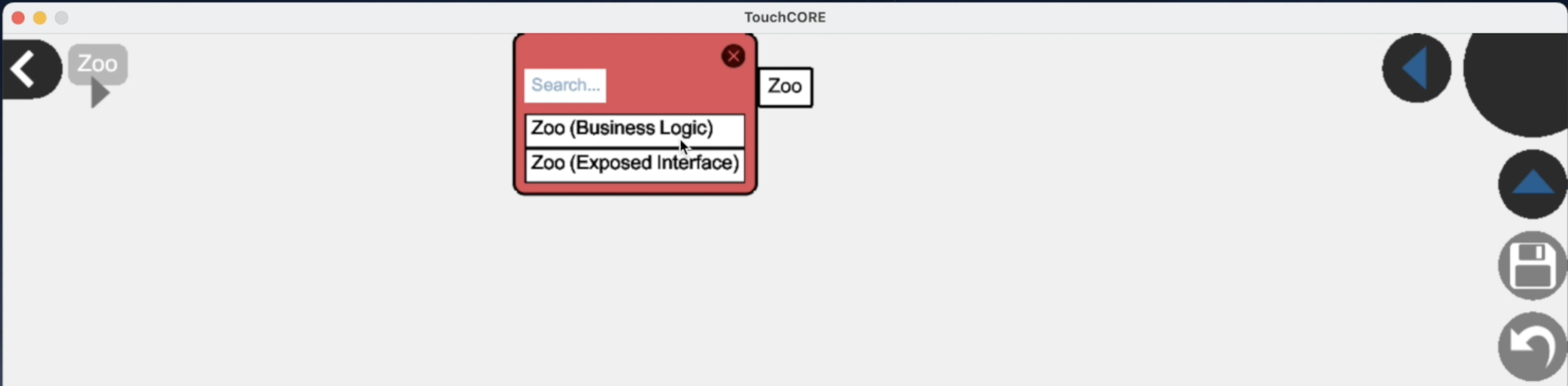

  • Select "Open Realization Model"
  • Open the "Exposed Interface" model
• Modify the ResTL model according to the provided Interface Description

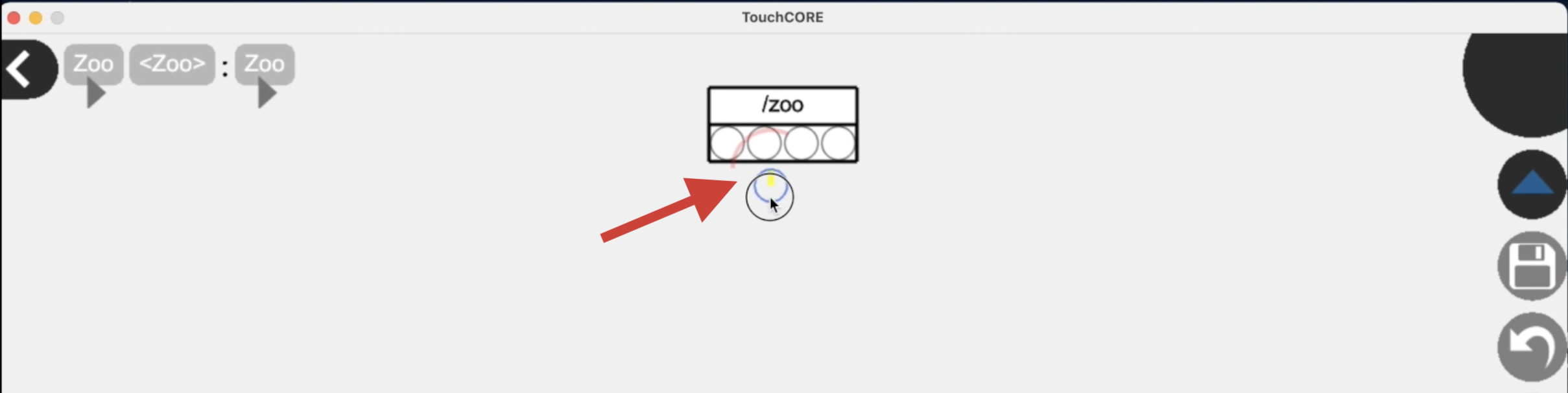

  • Drag down to add new resources to the tree (start dragging slightly under an existing box)

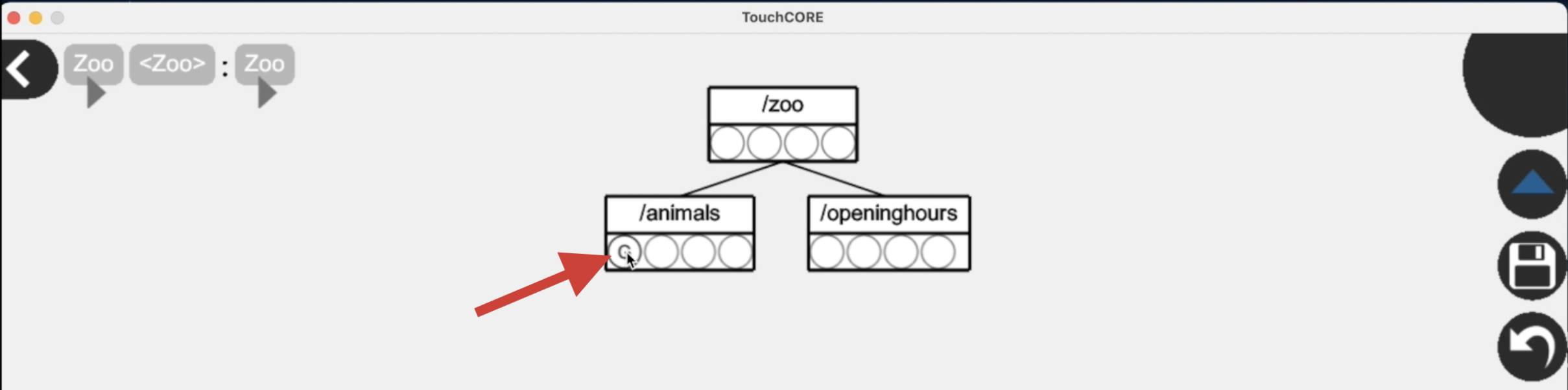

  • Click the circles to enable Get / Put / Post / Delete methods for a resource.

• If you made a mistake, either
  • tap and hold on a resource to remove it
  • double click a resource to rename it

Resource and Parameter Mapping

• While in the ResTL perspective, additionally open the Class Diagram perspective in split-view mode.

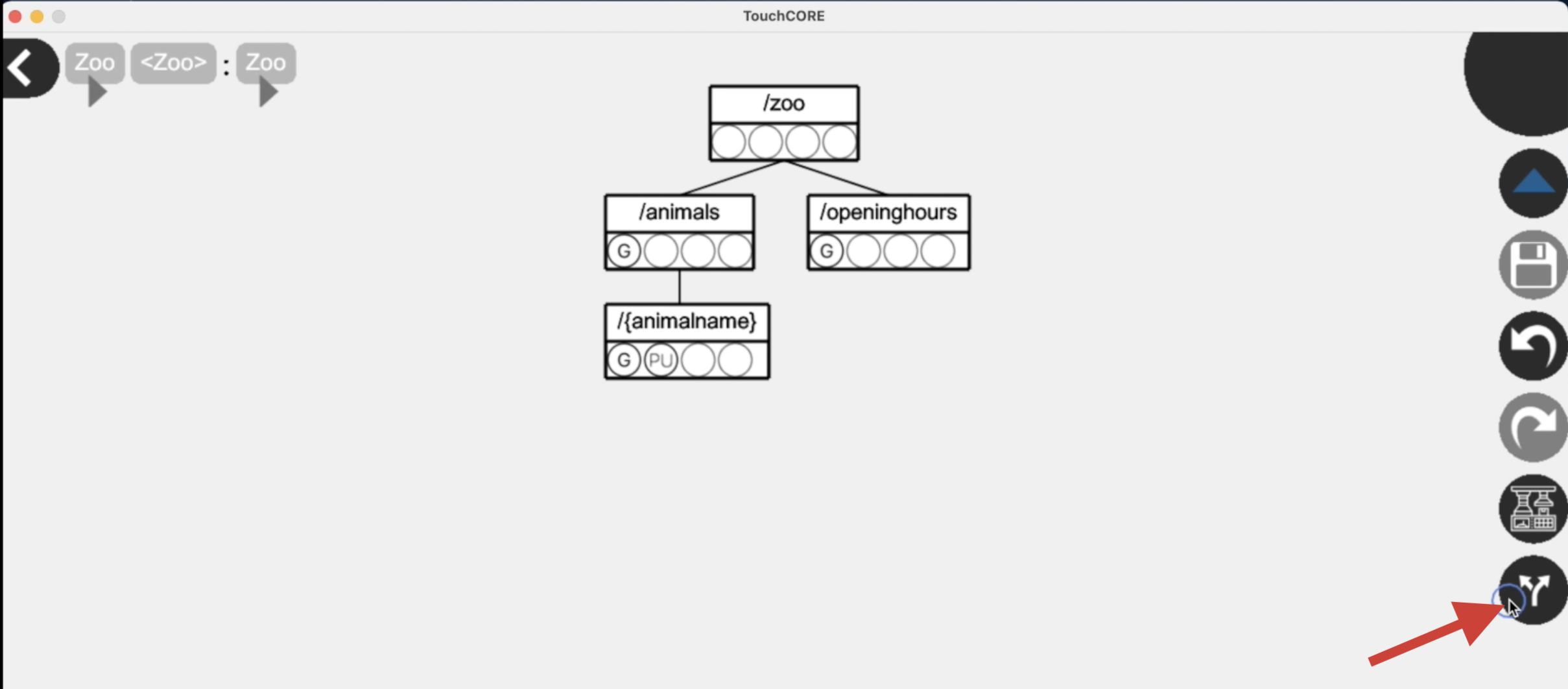

  • Click the Split-View Button
  • Select the Class Diagram model
• Drag lines to establish mappings

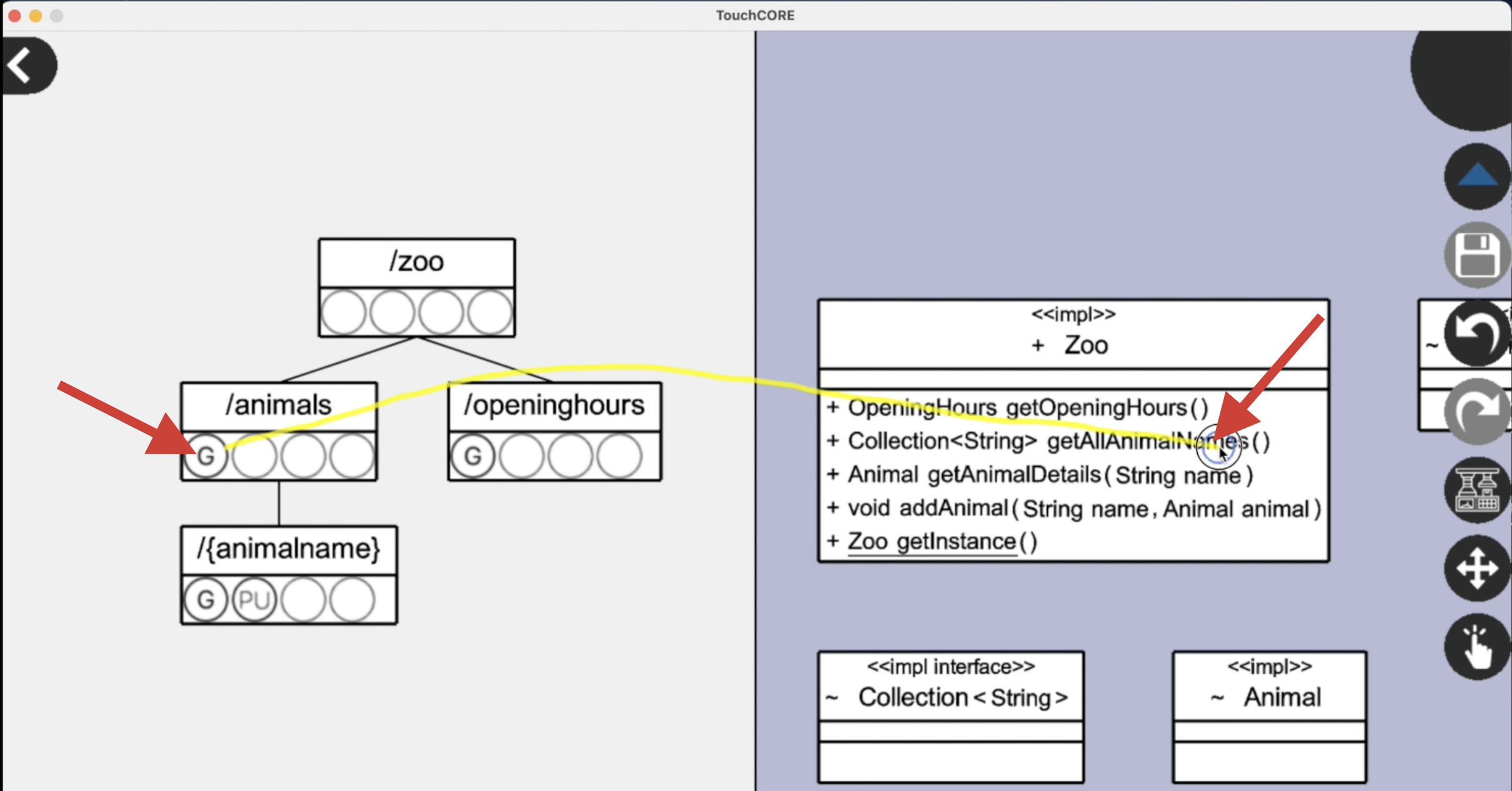

  • Connect Resource Methods (circles) to Class Operations

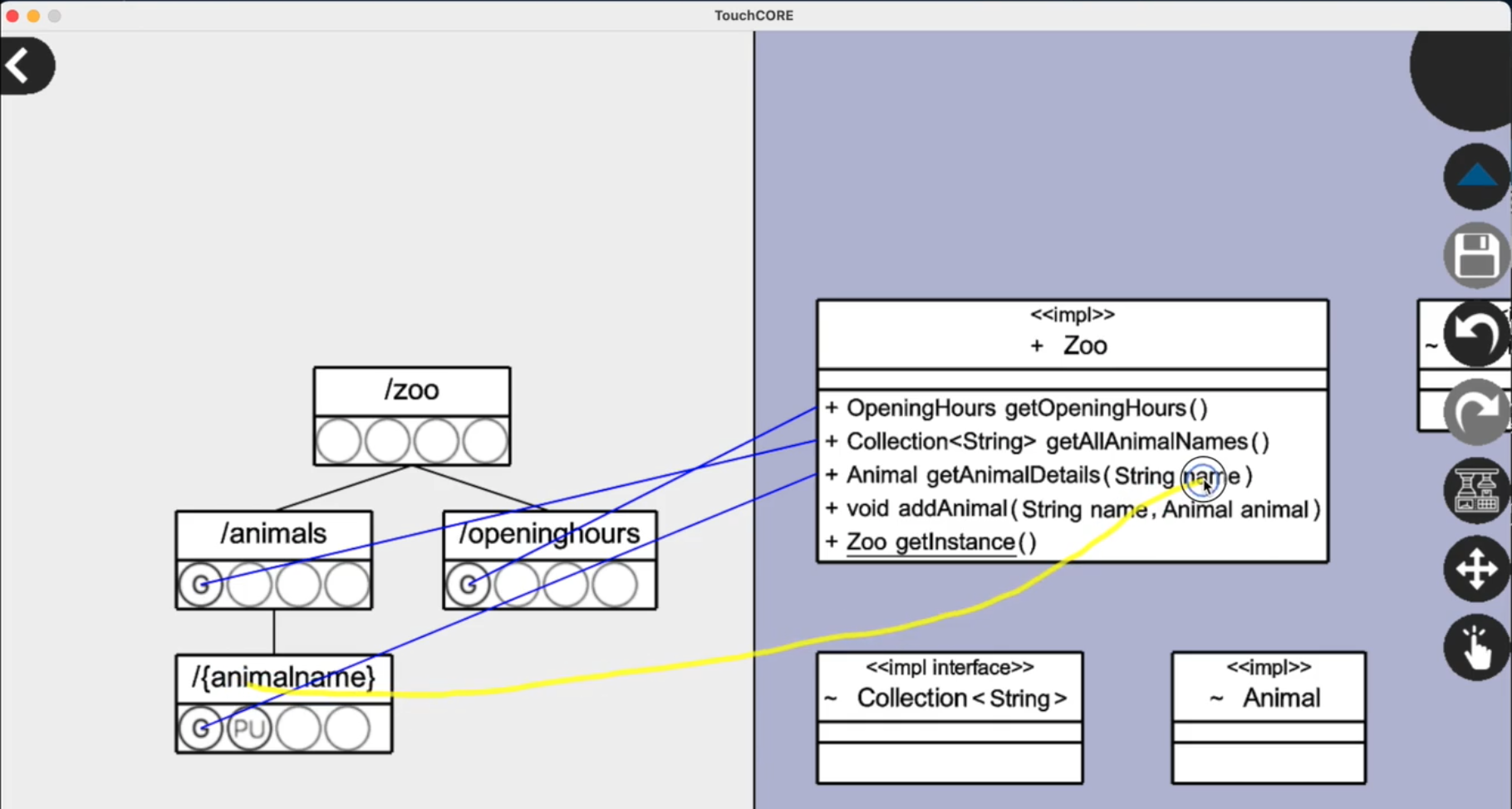

  • Connect Dynamic Resources (text in boxes) to Operation Parameters


Heads-up: A correctly mapped model showcases lines of both colours, blue and green! If you only see one colour you may have forgotten parameter mappings.

Code Generation

• Make sure the original application is registered in your system:
  • Clone the sources of the original (unrestified) java application
  • Install it as library, with mvn clean install

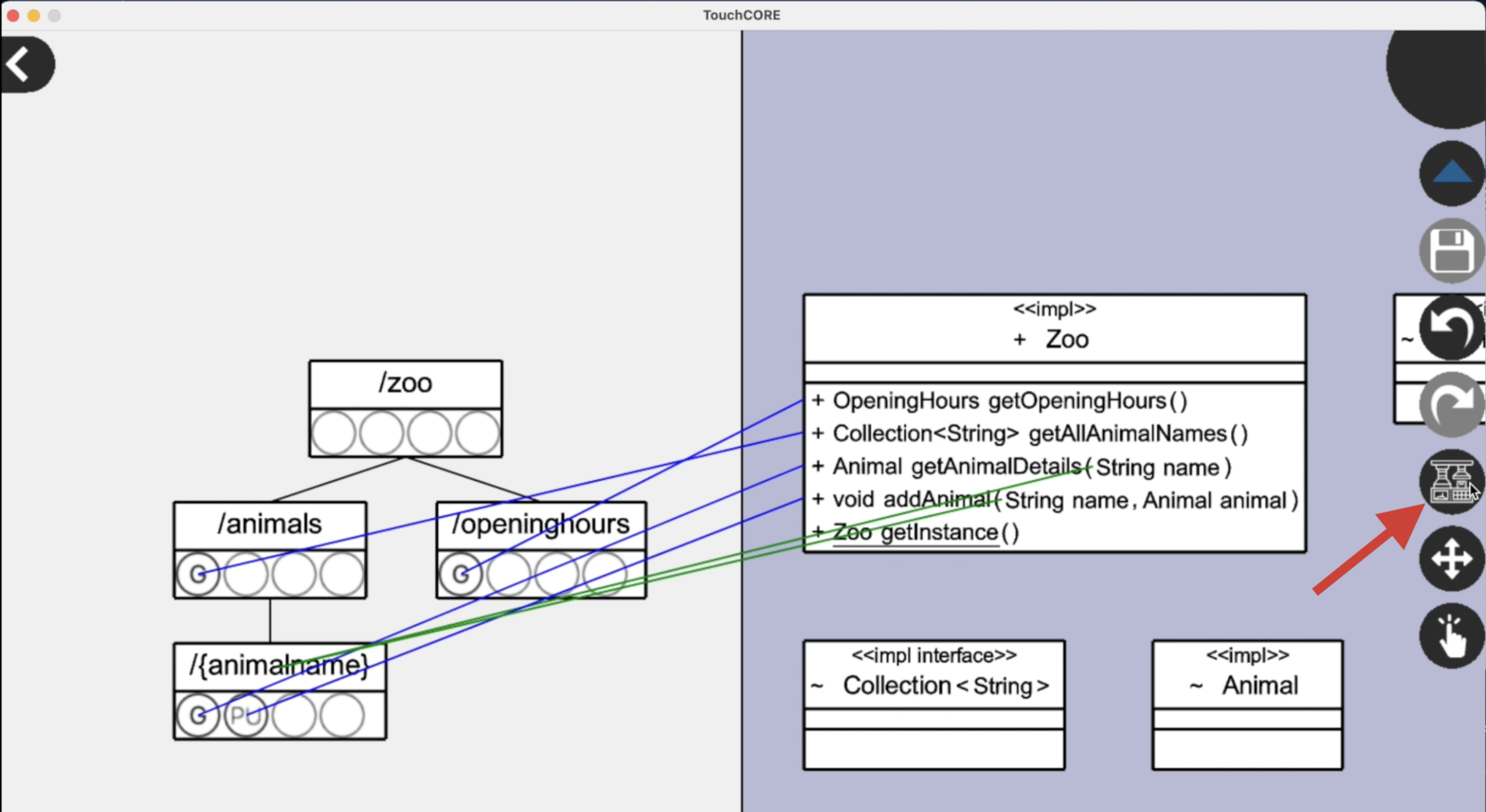

• Generate the RESTified code with the Transformator button


Build and Run your REST service

• Navigate to your TouchCORE model directory
• Open a terminal in the new generated sources folder
• Run the RESTful service with: mvn clean package spring-boot:run
• Test any Get operation with your browser, e.g.:
  http://127.0.0.1:8080/zoo/animals

Compile and Test

To compile and test your produced REST service:

• Compile your project with: mvn clean package
• Open the newly generated target folder.
• Run the generated JAR file with: java -jar YOUR-SERVICE-NAME.jar
• Test access with your browser. You can directly access any [GET] resource by typing this into the URL bar:
  http://127.0.0.1:8080/zoo/animals
  (where zoo/animals is replaced by a valid GET-enabled resource of your application)

Your Task

Now it is your turn!

WARNING! Double check that your screen recording is still running. Your entire on-screen task activity must be captured.

Instructions

• All you need to do is replicate the above steps for the requested app.
• Limits:
  • You may stop whenever you deem the task successfully completed.
  • You may also stop after 90 Minutes of refactoring, whatever the state of your refactoring - You are however also allowed to continue as long as you want.
• The target REST interface description for your task is below.
• Please now run a TouchCORE assisted conversion of the Book Store into a RESTful service.

Legacy Application Details

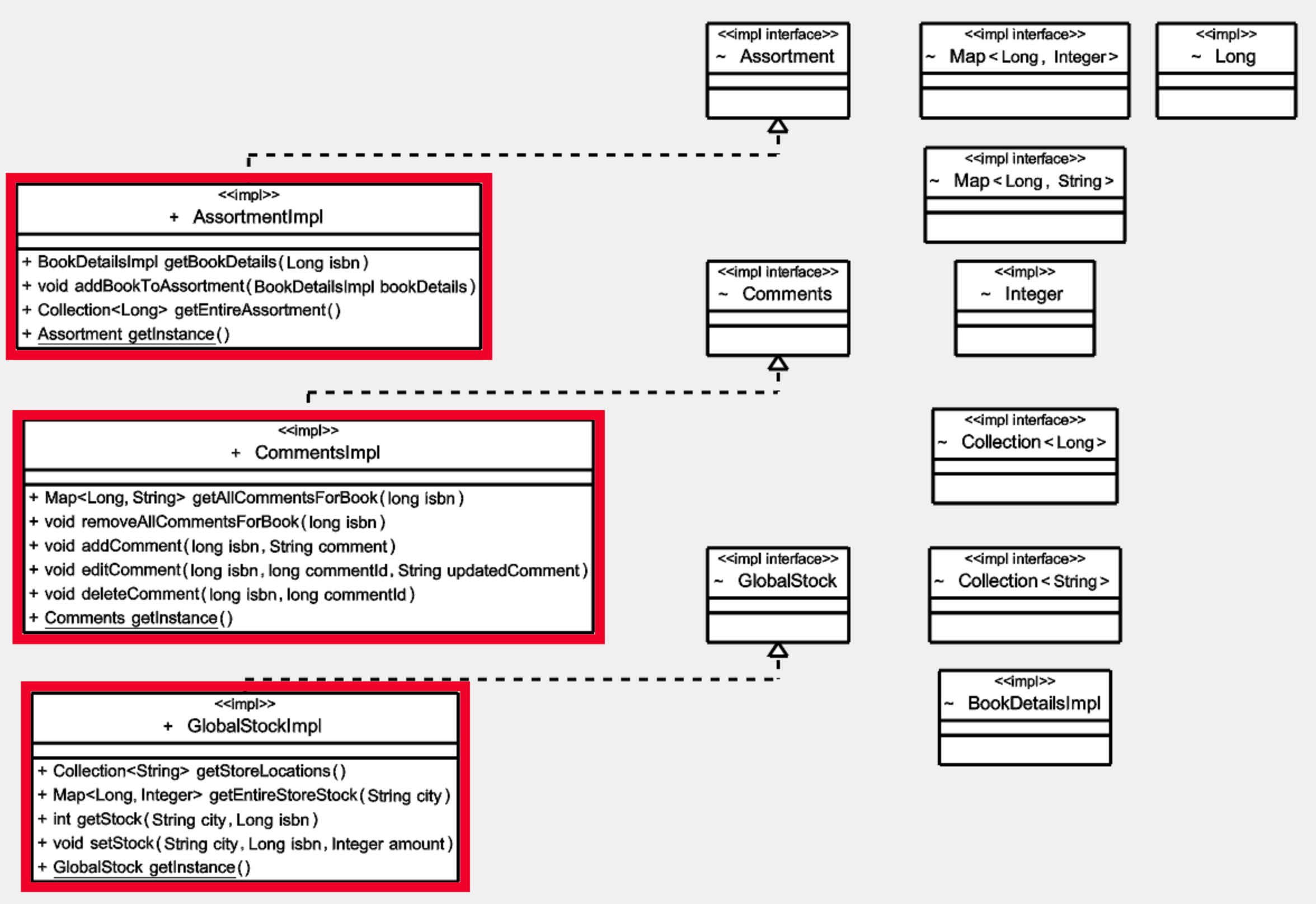

Below diagram highlights classes and methods of the legacy Book Store application, relevant to your RESTification task. For more information on theses methods, also consult the Book Store online documentation.

Interface Description: Book Store Resources and Methods

• Your interface should begin with a top-level resource "bookstore", not offering any methods.
• "bookstore" has two subresources, "isbns" and "stocklocations", both offering a [GET] method.
  • A [GET] request to "isbns" should result in a listing of all isbn numbers stored in the system.
  • A [GET] request to "stocklocations" should result in a listing of all geographic store locations.
• The "isbns" resource should have a single dynamic placeholder subresource representing an isbn number,
  • A [GET] request to the dynamic placeholder subresource should provide details on a given book, identified by isbn number which serves as input parameter.
  • A [PUT] request to the dynamic placeholder subresource should allow adding a new book to the system. All details on the book are passed as request body payload. (Note: This might look a bit peculiar to not use the value of the dynamic placeholder "isbn" for a subsequent mapping. That is ok here, because the required ISBN information is also contained in the body payload object. We do not want you to add any additional validation here, to keep things simple.)
• The dynamic placeholder resource should have a child resource "comments", representing comments for a given book, identified by isbn. The value of the parent placeholder resource determines which book is targeted.
  • A [GET] request to the "comments" resource should result in a listing of all comments for the specified book. The value of the parent resource representing an isbn number servers as input parameter. The result should index comments by their id.
  • A [POST] request to the "comments" resource should allow the creation of new comments. The id of the new comment is generated on server side and not required, however, again the parent placeholder resource encodes the isbn of the targeted book. The comment itself is to be transmitted as request body payload.
  • A [DELETE] request to the "comments" resource should delete all comments for a given book, identified by the isbn number of the parent dynamic placeholder resource.
• The "comments resource should have a dynamic subresource representing a specific comment by id. It offers two methods: [POST] and [DELETE].
  • A [POST] request to specific comment should allow to alter the content of that comment. Target book and target comment are respectively identified by the dynamic resource itself and the corresponding grandparent placeholder resource. Similar to comment creation, the new comment content is tranmitted as request body payload.
  • A [DELETE] request to specific comment should allow removal of an existing comment. Target book and target comment are respectively identified by the dynamic resource itself and the corresponding grandparent placeholder resource.
• The "stocklocations" resource shoud have a dynamic subresource representing a specific geographic location (city name).
  • A [GET] request to a specific location should return the exact amount of book copies in stock for the given location, as a map indexed by isbn number. The path variable itself providing the target location can serve as argument for a corresponding method call.
• Finally, the dynamic resource representing a specific geographic location should itself have a dynamic subresource representing the stock for a given book at the given location.
  • A [GET] request on this dynamic resource should return the amount of copies in stock for a book specified by isbn (the value of this placeholder resources) and stock location (the value of this resource's parent placeholder resource)
  • A [POST] request on this dynamic resource should update the current amount of copies for a given book. Target location and isbn are likewise encoded by this placeholder resource and its parent placeholder resource. The new amount is provided as request body payload.

Click here to download interface description as file.
