Stippling with aerial robots

B. Galea
McGill University
E. Kia
McGill University
N. Aird
McGill University
P. G. Kry
McGill University

Abstract

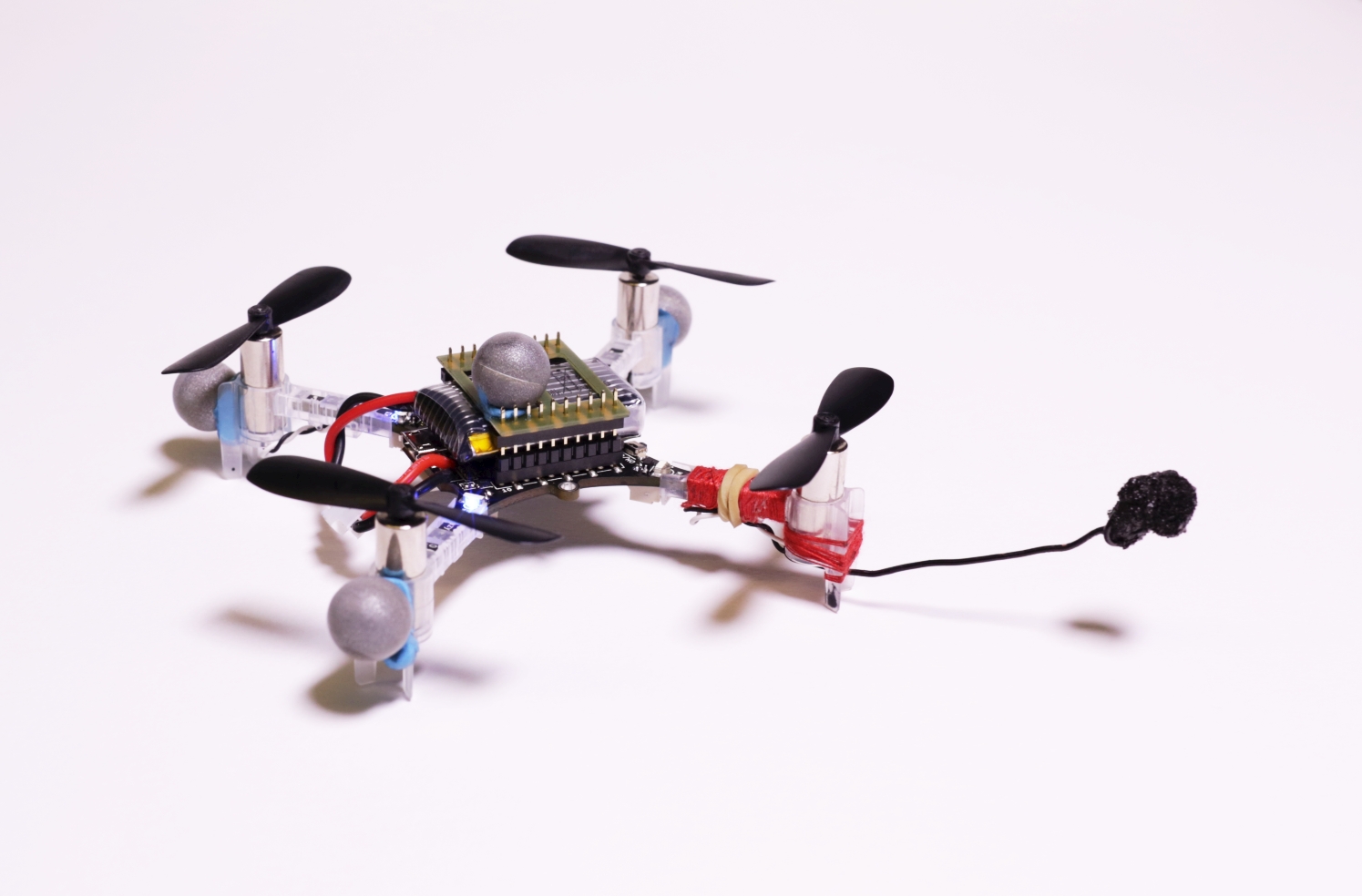

We describe a method for creating stippled prints using a quadrotor flying robot. At a low level, we use motion capture to measure the position of the robot and the canvas, and a robust control algorithm to command the robot to fly to different stipple positions to make contact with the canvas using an ink soaked sponge. We describe a collection of important details and challenges that must be addressed for successful control in our implementation, including robot model estimation, Kalman filtering for state estimation, latency between motion capture and control, radio communication interference, and control parameter tuning. We use a centroidal Voronoi diagram to generate stipple drawings, and compute a greedy approximation of the traveling salesman problem to draw as many stipples per flight as possible, while accounting for desired stipple size and dynamically adjusting future stipples based on past errors. An exponential function models the natural decay of stipple sizes as ink is used in a flight. We evaluate our dynamic adjustment of stipple locations with synthetic experiments. Stipples per second and variance of stipple placement are presented to evaluate our physical prints and robot control performance.

Computational Aesthetics / Expressive 2016
(BEST PAPER).

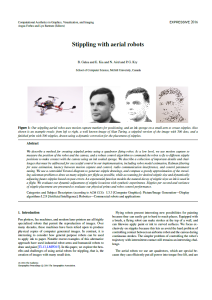

Paper [PDF, 2.6 MB]
Video [MP4, 84 MB]
Presentation [PPTX, 83 MB]
Presentation [PDF, 3 MB]
@inproceedings{Galea2016,
  author = {B. Galea and E. Kia and N. Aird and P. G. Kry},
  title = {Stippling with aerial robots},
  booktitle={Computational Aesthetics (Expressive 2016)},
  pages={10 pages},
  year={2016},
}
Symposium on Computational Fabrication 2016

Graphics Interface 2016 (best poster honourable mention)

Poster [PDF, 2.1 MB]
Press coverage

QUARTZ - This little drone could be the next Michelangelo

McGill Nouvelles - Et si les drones dessinaient...

McGill Newsroom - Dot-drawing with drones
